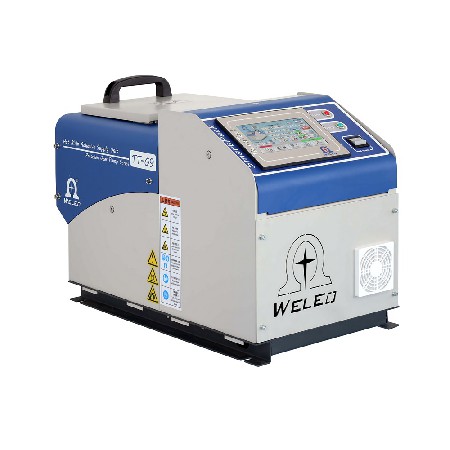

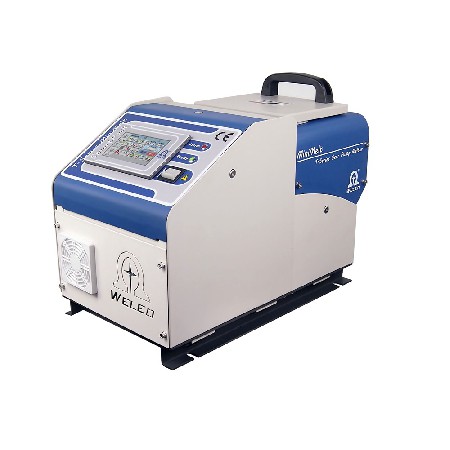

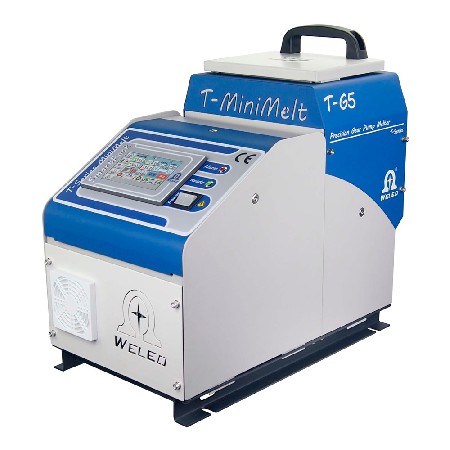

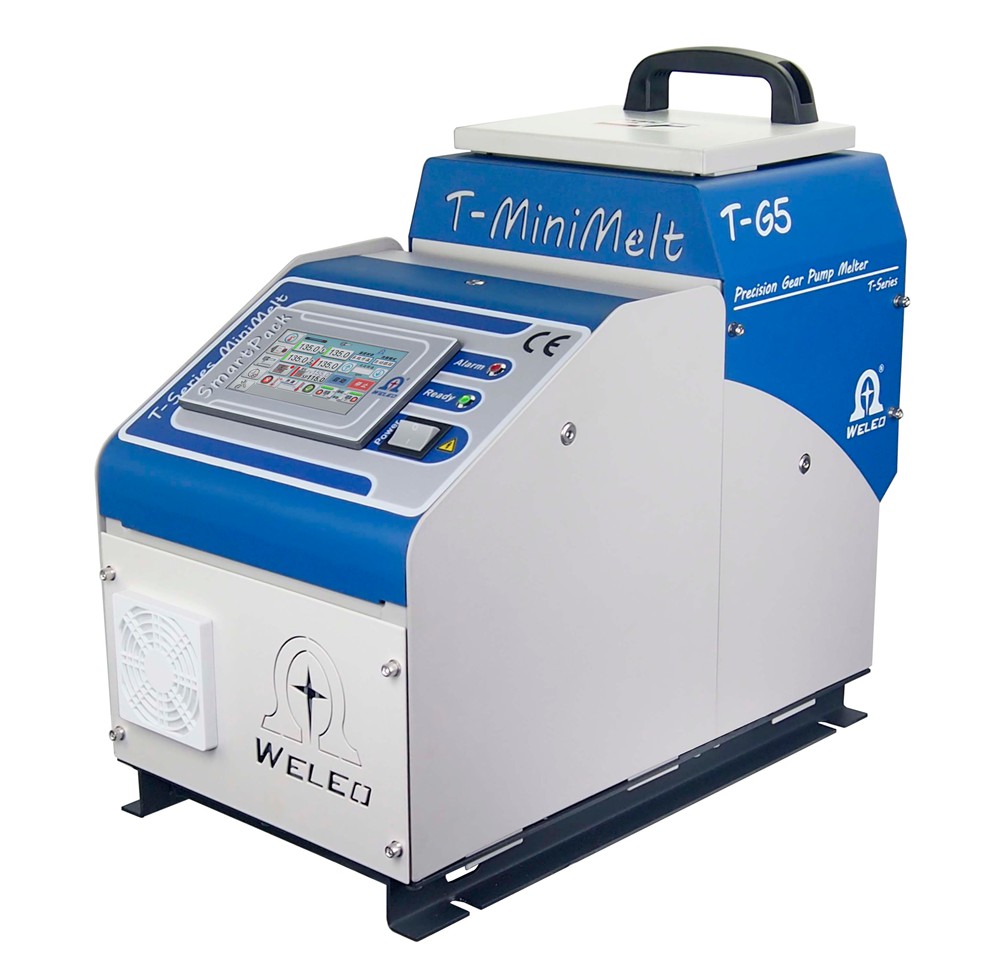

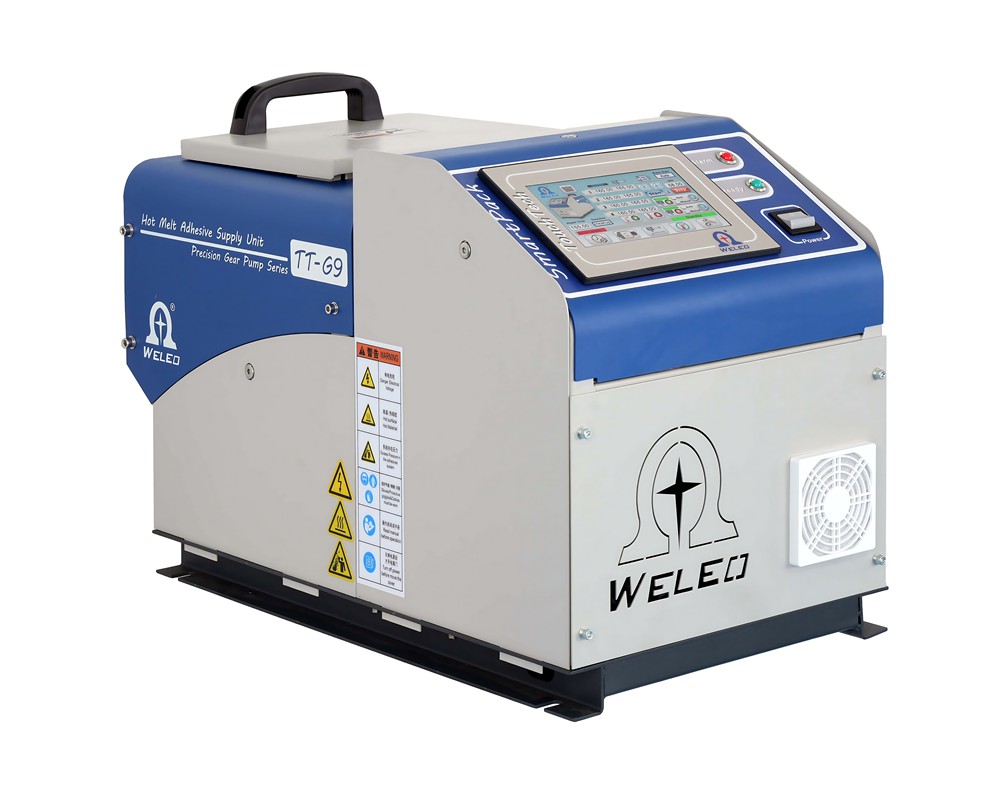

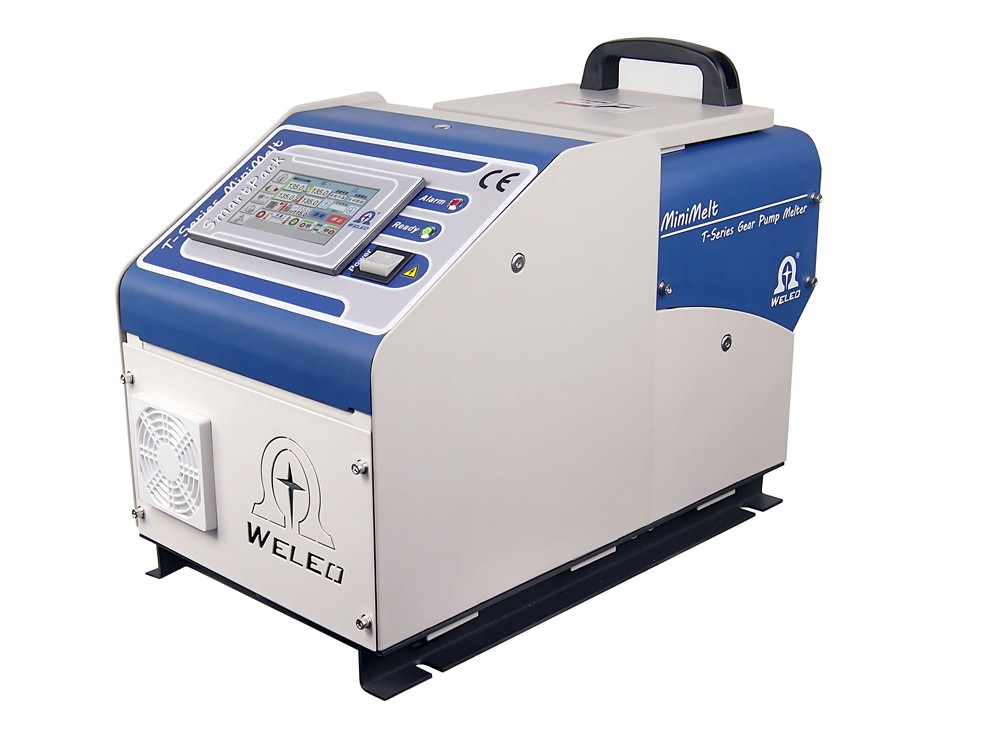

The TT series hot melt glue machine is a compact yet powerful tool for modern automated lines. Available in 3kg, 5kg, and 9kg capacities, it suits different production needs. It can be fitted with 2 to 4 glue hoses for versatile adhesive tasks.

Its key feature is a precise gear pump system that ensures stable glue flow and allows for single or double-layer output, boosting accuracy and flexibility. With real-time glue level monitoring, it prevents disruptions and ensures smooth operations.

The melting tank has a Teflon coating for durability and a double-layer insulation for temperature stability, resulting in better bonding and efficiency.

In short, the TT series is a perfect match for automated lines, enhancing production quality and efficiency.

Overview:

3/5/9kg Hopper capacity

Die-Cast hopper increase heat efficiency with Teflon coating

The melting tank with an insulation jacket saving energy

Removable access both side of covers expose easy maintenance

Gear pump 0.16 cc to 5.4cc single/dual pump

Precision gear pump adhesive pressure up tp 1000psi

Melter built-in primary filter and high efficiency filter

Maximum connect with 4hose/4head applicators

TouchTech Contorl

7" HMI high resolution color touchpad

System status message display immediate

Temperature sensor compatible with Pt100, Ni120, NTC or FE-KO

Melter Key to production line connection

7 days schedule melter on/off

Temperature standby mode on/off

Glue dispensing pattern conrtrol with high speed distance compensate

Adhesvies low level sensor with alarm (optional)
